TECHNICAL INFORMATION
CARRIER MATERIAL
The Carrier Materials for Drive Belts and Conveyor Belts

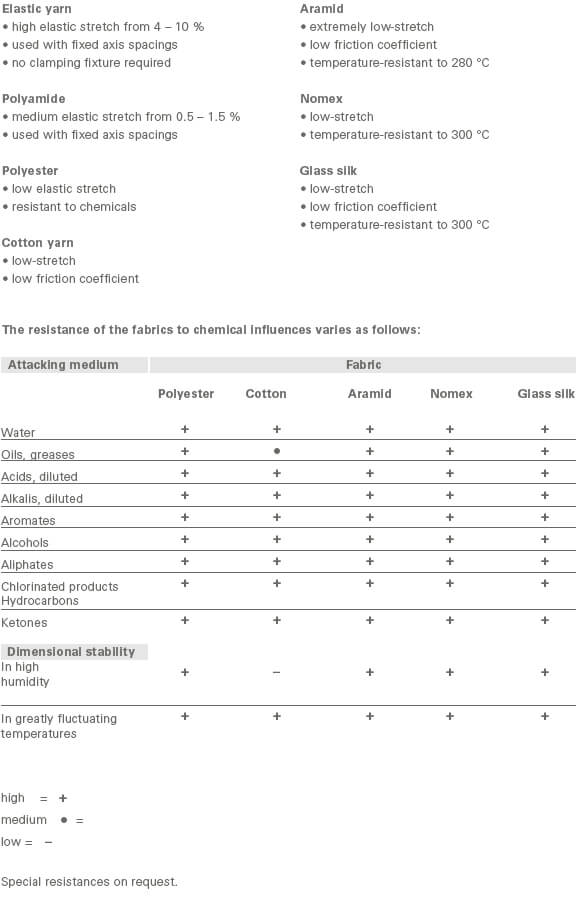

You may find all technical information on Schlatterer’s special fabric here. The fabric is manufactured on state-of-the-art knitting machines in an endless process. It forms the basis for every type of working, coating and refining. Belts with specific properties are created, depending on the carrier material.
1. Schlatterer special fabric…
…is manufactured on state-of-the-art knitting machines in an endless process.
2. Timing belt and multi-V belt supplied by the customer …
… made of polyurethane and neoprene, coated by us on the rear side in an endless process, without a seam.
As well as our own special fabric, we use neoprene or polyurethane timing belts as tension members. The customer provides the basic timing belt, and we apply our various coating materials without a seam.
We make complete PU V-rubbed belts with the various rib profiles. We can also refine customer-supplied multi-V belts with our various coating materials in an endless process.
COATING MATERIALS
The Coatings For Drive Belts and Conveyor Belts
All Esband coatings are applied in an endless process, with you specifying the belt running direction that you require. We coat flat belts, timing belts and multi-V belts. You can also get short-run batches for a reasonable price and in the sizes that you require.
We recommend different coating materials, depending on the application:
Polyurethane
GX90
70 ShAnatural
FDA approved
| Label Needed | Type | Hardnesses | Colours | Temperature-resistance | Thicknesses | Characteristics |
|---|---|---|---|---|---|---|
| PU | 30 ShA, 55 ShA, 70 ShA | yellow, red, blue, grey | to 60°C, briefly 80°C | up to max. 10 mm, other dimensions on request | Very good friction coefficient to paper | |
| SPU | Foamed PU | 20 ShA, 55 ShA | grey | -40 to 80°C, briefly 160°C | ||
| IP | 85 ShA | natural | up to 80°C | antistatic, FDA approved | ||
| FX | Thermoplastic PU | 80 ShA, | white, blue | to 80°C | up to max. 20 mm | Very good resistance to abrasion, FDA approved |
| TPE | Thermoplastic PU | 85 ShA | white | Antistatic, FDA approved | ||
| GX70 | 70 ShA | natural | FDA approved |
Silicones
| Label Needed | Hardnesses | Colours | Temperature-resistance | Thicknesses | Characteristics |
|---|---|---|---|---|---|
| SI | approx. 30-35 ShA | white, grey, blue, red, transparent | to 180°C, Colour red to 250°C and briefly 300°C | up to 10 mm | FDA approved, repels dirt, resistant to chemicals, high friction coefficient |
| SI 50 | approx. 50 ShA | white, blue, red, yellow | to 180°C | up to max. 30 mm | FDA approved, repels dirt, high friction coefficient, very good resistance to weathering |
Thermoplastic Polyester
| Label Needed | Hardnesses | Colours | Temperature-resistance | Characteristics |
|---|---|---|---|---|
| HT 40 | 40 ShD | white, blue, black | to 100°C |
Very good resistance to microbes and weathering, good tear propagation resistance |
| HT 40 F | 40 ShD | white, blue | to 100°C | FDA approved, Very good resistance to microbes and weathering, good tear propagation resistance |
| HT 63 | 63 ShD | white, black | to 140°C | Very good resistance to microbes and weathering, good tear propagation resistance |
Rubbers
| Label Needed | Type | Hardnesses | Colours | Temperature-resistance | Characteristics |
|---|---|---|---|---|---|
| NE | Chloroprene rubber | approx. 70 ShA | black | to 100°C | High friction coefficient, low wear, good resistance to oils, greases, ozone, low bending resistance |
| NR | Natural rubber | 40 ShA, 50 ShA | white, red, maroon | to 60°C | Extremely high friction coefficient, highly elastic, low tear propagation resistance |
| NBR | Nitrile rubber | 65 ShA, 75 ShA | white, blue, light grey | to 80°C | Wear-resistant, FDA approved (white only), very good resistance to oils and greases |
| xNBR | Carboxylated nitrile rubber | 75 ShA | pale beige | to 100°C | Very wear-resistant, suitable for accumulation operation, extremely good resistance to oils and greases |
| SI rubber | Silicone rubber | 80 ShA | light grey | to 150°C | Repels dirt, FDA approved |
| EPDM | EPDM rubber | 65 ShA | green | to 120°C | Very good resistance to ozone, acids and alkalis, high friction coefficient |
PVC
| Label Needed | HARDNESSES | COLOURS | TEMPERATURE-RESISTANCE | CHARACTERISTICS |
|---|---|---|---|---|
| PVC | 50 ShA | red | to 60°C | Very good resistance to microbes and hydrolysis, resistant to chemicals, good tear propagation resistance |
Special Versions
Special Versions – Esband makes it possible!
An Esband is always a belt that tailored precisely to your needs that has been manufactured in an endless process. We use computer-controlled machining systems for the further processing. This, our own development, allows for holes and cutouts (e.g. for suction slots or transport pockets) in almost any shape. The following are a few examples and technical informations from a range of endless processing possibilities:
Technical Data for Designers
Esband creates endless design possibilities. As a designer or machine constructor, here you will find information about some pulley design, the design of the belt transmission, arrangement of tensioning rollers or special drive forms. We would also be happy to support you in relation to your design ideas.
Our belts are suitable for different pulley arrangements. More information is available on request from our sales engineers.
Drum Tyres
Drum Tyres in Proven Esband-Quality
Our drum tyres for the tobacco industry are made for all common filter and cigarette machines. In our assortment you will find various types with and without profile and in all dimensions – all of them in the usual Schlatterer quality and with high availability.
Our latest model FX 9212 is also FDA-compliant.
Overview Drum Tyres
| Label Needed | COATING | HARDNESS (SHORE A) | LENGHT (MM) | WIDTH (MM) | THICKNESS (MM) | DATASHEET |
|---|---|---|---|---|---|---|
| FX 9212 profiled *FDA-compliant* |
TPU | 92 | 480 – 1000 | 5 – 100 | 1.3 – 2.7 | FX9212 W-profile-ground FX9212 W-profile-imp |
| FX 9212 smooth *FDA-compliant* |
TPU | 92 | 480 – 1000 | 5 – 100 | 1.3 – 2.7 | FX9212_smooth-ground |
| NR 22 | XNBR rubber | 75 | 400 – 4800 | 3 – 420 | 1.3 – 2.7 | NR22 grey smooth-profiled |
| NR 22 blue | NBR rubber blue | 75 | 400 – 4800 | 3 – 420 | 1.3 – 2.7 | NR22 blue smooth-profiled |
| HT 40133 | Hytrel | 40 | 540 – 4000 | 5 – 600 | 1.3 – 3.0 | HT40133 T-profile |
| NE 133/1 + PU | Neoprene rubber | 62 | 200 – 5100 | 3 – 420 | 2.5 | NE133-1+PU ground |
You need more technical information or have not found what you are looking for?
Contact us now, we are happy to help!
